Kuhn Gyrorakes
GA Mounted Single Rotor Rakes
The GA single rotor rakes are available in the following models: GA3201GM (3.2M), GA4121GM (4.1M), GA4321 (4.2M), GA4521 (4.5M). The GA3201GM offers 9 tine arms with 3 tines per arm. The GA4121 has 10 arms/4 tines per arm, the GA4321 has 12 arms/4 tines per arm, the GA4521 has 13 arms/4 tines per arm. These models offer the follwing features: tangential mounted tine arms (ideal position regarding the windrow), double curved tines for high clearance and perfectly structures windrows, heat treated steel tines, patented Masterdrive gearbox for intensive use, pivoting headstock, headstock suspension on GA4321/GA4521, bogey axle available on all models.

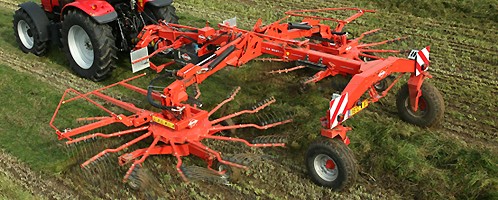

GA Semi-Mounted Twin Rotor Rakes
The GA twin rotor rakes are available in the following models: GA6501 (5.4 - 6.4M), GA7501 (6.85 - 7.45M), GA8521 (7.5 - 8.5M). The GA6501 offers 10 rotors/3 tines per arm, the GA7501 has 11 rotors/4 tines per arm, the GA8521 has 13 rotors/4 tines per arm. These models offer the following features: large adjustable working widths, easy rotor spacing adjustment (hyd on GA8501), PTO drive on GA6501 & GA7501, hydraulic drive on GA8501, 3D or bogey axle suspension (see model), adjustment on raking height, pivoting headstock.
